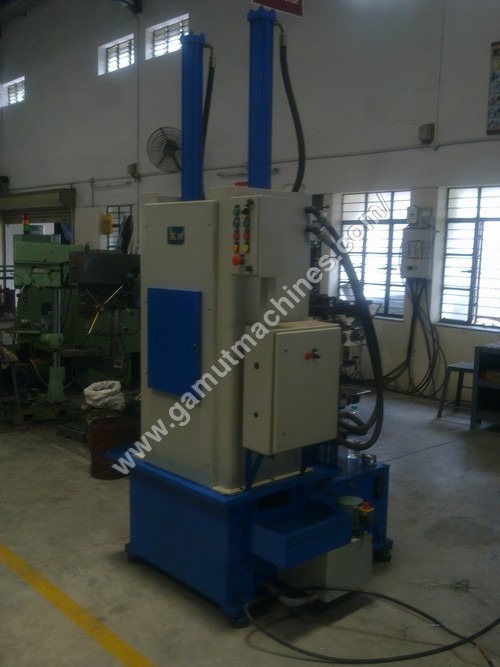

Hydraulic Broaching Machine

Hydraulic Broaching Machine
Hydraulic Broaching Machine
Product Code : 07
Brand Name : GAMUT
Product Description

We have successfully constructed an ultra-modern facility that helps us to manufacture, supply and export Hydraulic Broaching Machine. These products are made of supreme quality raw materials that are obtained from the reliable sellers of the industry. In order to determine their fine functioning and exceptional operation, these products are tested by our team of quality analyzers. Hydraulic Broaching Machine is acknowledged in the international market for their high usage in different broaching applications.

Other details:

GAMUT Vertical Broaching Machines are Pull Down Type and Hydraulically operated. These machines are precisely made with hardened, ground and chrome plated 4 guide bar with suitable linear guide bushes fitted on Broach puller holding guide plate which are bored on highly precise jig boring machine to maintained centerline with allied machine parts and suitably heat treated to give maximum accuracy continuously. These machines are robustly constructed to minimized vibration during Broaching operation.

KeyFeatures

  • Built in Coolant Equipment
  • Built in Hydraulic Power pack
  • Splash Guard
  • Broach pullers to suit broach shank with guide plate.
  • Broach holding guide plate move up and down on 4 Hardened and ground guide bar.
  • Broach guide bush for tail end to suit broach shank in case of Broach Retriever System
  • Hydraulic broach Retriever System optional item at extra cost.

Technical Specification:

Model GAMUT-VB1 GAMUT-VB2 GAMUT-VB3 GAMUT-VB4
Stroke of Broaching in mm 750/1000/1200 750/1000/1200 750/1000/1200 1200
Pulling force in kg 3500 6000 10000 15000
Broach Feeding speed Meter/Minuit 0-5 0-5 0-3 0-3
Broach return speed Meter/Minuit 5 5 3 3
Max Bore on Top working table in mm 90 90 110 110
Workinf Table in mm 400X600 500X700 650X750 750X850
Hydraulic Motor HP 5 7.5 12 15
Hydraulic Maximum Working Pressure in Kg/Cm² 23 Gear/Variable 30 Gear/Variable 20-40 Variable 30-50 Variable
Hydraulic Tank Capacity Liter 125 150 250 250
Pump Output in LT / Min



Coolant Motor H.P. 0.15/0.25 0.25/0.50 0.5 0.5
Coolant Tank Capacity 125 150 150 175
Approximate Weight in Kg 1250 1650 2300 3500
