Lathe Copy Attachment

Lathe Copy Attachment
Lathe Copy Attachment
Product Code : 18
Brand Name : Gamut
Product Specification

We are a well known name in the domain of manufacturing, supplying and exporting Lathe Copy Attachment. These products are used in different copying machines in the printing and paper industries for their optimum functioning. With longer service life and low maintenance costs, these products are very popular among our prestigious clients in the global market. Lathe Copy Attachment can be procured from us in different specifications as per the demands of the industry.

Other details:

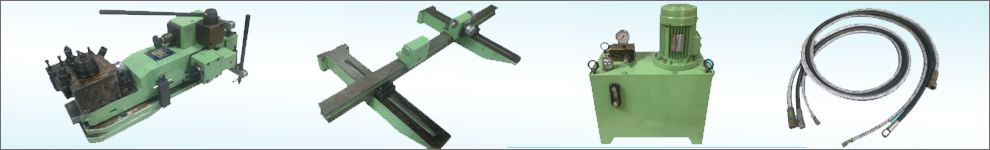

GAMUT Hydraulic Copy turning Face copying & Copy boring. GAMUT LATHE TRACERS are made by Graded Casting and have been robustly constructed to take maximum cut with hardened tool post and very sensitive and precise Copy-Valve to render trouble free longer service. GAMUT TRACER can be mounted at rear or front of a lathe machine and can be operated by semi-skilled personnel. Inspection time is drastically reduced and production is increased by many times within accuracy of ±0.025mm when use good machining condition.

Specification:

NO DESCRIPTION UNIT 5660 7090 7014 1014 1020
A COPY SLIDE
1 Stroke of Hydraulic Cylinder mm 60 90 140 140 200
2 Effective Stroke at 60ƒ° to Lathe Axis mm 52 78 121 121 173
3 Effective Stroke at 45ƒ° to Lathe Axis mm 42 63 99 99 141
4 Bore dia of Hydraulic Cylinder mm 56 70 70 100 100
5 Diameter of Piston Rod mm 40 50 50 70 70
6 Maximum forward thrust at 18/14 Bar kg 190 370 370 470 470
7 Weight of Copying Slide with Tool Post kg 38 70 79 120 130
B OIL HYDRAULIC UNIT
1 Hydraulic working Pressure Kg/cm² 18 18 18 14 14
2 Pump Output Lit/min 7 7 7 14 14
3 Electrical Motor Power HP 1 1 1 1.5/2 1.5/2
4 Tank Capacity Liter 40 40 40 60 60
5 Weight of Complete Hydraulic Unit Kg 60 60 60 78 78
6 Recommended Oil Enklo-32, Hydrol-32 etc
C MASTER CARRIER
1 Maximum Diameter of Round Master mm 90 90 90 200 200
2 Maximum Length of Beam mm 1000 1000 1000 2000 2000
3 Weight of Complete Master Carrier Assy. kg 38 38 38 62 62
D GENERAL
1 Maximum Tool Shank mm 20X20 25X25 25X25 32X32 32X32
2 Center Height from Top of Cross mm 85 95 95 135 135
E OPTIONAL ITEMS
1 Number of cut with Auto






Indexable Turret No. 6 6 6 6 6
2 Maximum Length of Flat Master mm 300 300 300 400 400
